Kia Sportage: Trip modes (Trip computer) / Trip A/B

Kia Sportage QL (2015-2019) Owners Manual / Features of your vehicle / Trip modes (Trip computer) / Trip A/B

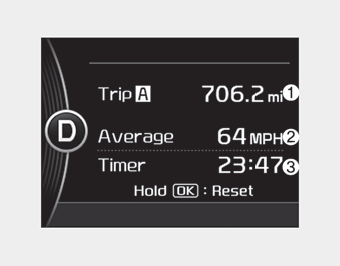

Tripmeter (1)

• The tripmeter is the total driving distance since the last tripmeter reset.

- Distance range: 0.0 ~ 9999.9 mi. or km

To reset the tripmeter, press the OK button (reset) on the steering wheel for more than 1 second when the tripmeter is displayed.

Average Vehicle Speed (2)

• The average vehicle speed is calculated by the total driving distance and driving time since the last average vehicle speed reset.

- Speed range : 0~160 MPH or 0~240 km/h

To reset the average vehicle speed, press the OK button (reset) on the steering wheel for more than 1 second when the average vehicle speed is displayed.

✽ NOTICE

Elapsed Time(3)

• The elapsed time is the total driving time since the last elapsed time reset.

- Time range (hh:mm): 00:00 ~ 99:59

To reset elapsed time, press the OK button (reset) on the steering wheel for more than 1 second when the elapsed time is displayed.

✽ NOTICE

Even if the vehicle is not in motion, the elapsed time keeps going while the engine is running.

Fuel Economy
Range (1) The range is the estimated distance the vehicle can be driven with the remaining fuel. - Distance range : 1 ~ 9,999 mi or 1 ~ 9,999 km. If the estimated distance is below 1mi. ( ...

Digital speedometer
This mode displays the current speed of the vehicle. ...
