Kia Sportage: Heating and air conditioning / Temperature control

Kia Sportage QL (2015-2021) Owners Manual / Features of your vehicle / Manual climate control system / Heating and air conditioning / Temperature control

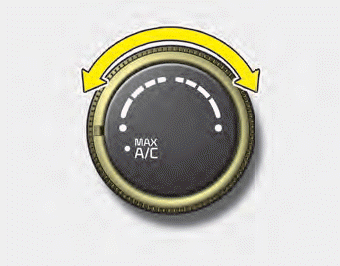

The temperature control knob allows you to control the temperature of the air flowing from the ventilation system. To change the air temperature in the passenger compartment, turn the knob to the right position for warm and hot air or left position for cooler air.

MAX A/C selection
The MAX A/C mode is used to cool the inside of the vehicle faster. Air flow is directed toward the upper body and face. In this mode, the air conditioning and the recirculated air position will be ...

Air intake control
The air intake control is used to select the outside (fresh) air position or recirculated air position. To change the air intake control position, press the control button. Recirculated air posi ...
