Kia Sportage: Heating and air conditioning / MAX A/C selection

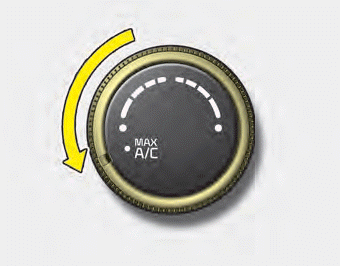

The MAX A/C mode is used to cool the inside of the vehicle faster.
Air flow is directed toward the upper body and face.
In this mode, the air conditioning and the recirculated air position will be
selected automatically.

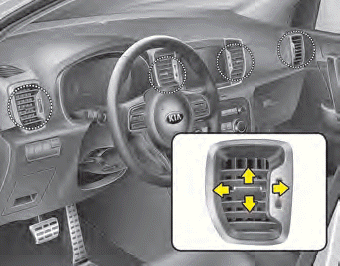

Instrument panel vents
The outlet vents can be opened or closed separately using the thumbwheel (if
equipped).
Also, you can adjust the direction of air delivery from these vents using the
vent control lever as shown.
The mode selection button controls the direction of the air flow through the
ventilation system.
Air can be directed to the floor, dashboard outlets, or windshield. Five symbols
are used to rep ...
The temperature control knob allows you to control the temperature of the air
flowing from the ventilation system. To change the air temperature in the passenger
compartment, turn the knob to th ...
