Kia Sportage: Roof Trim / Sunvisor Repair procedures

Kia Sportage QL (2015-2025) Service Manual / Body (Interior and Exterior) / Roof Trim / Sunvisor Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

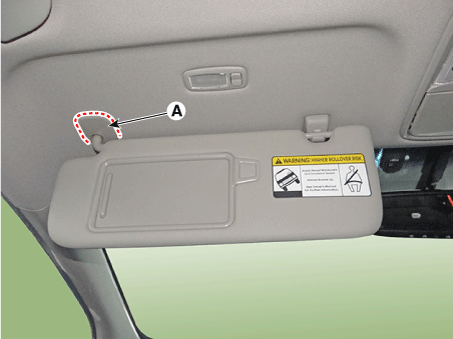

1.	Using a remover, remove the cap (A).

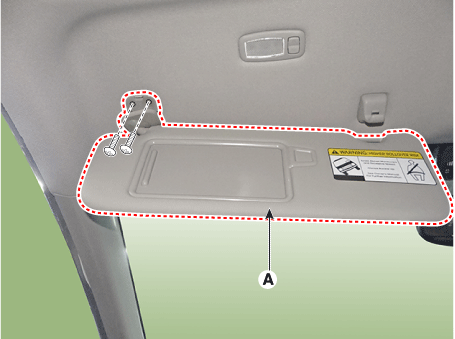

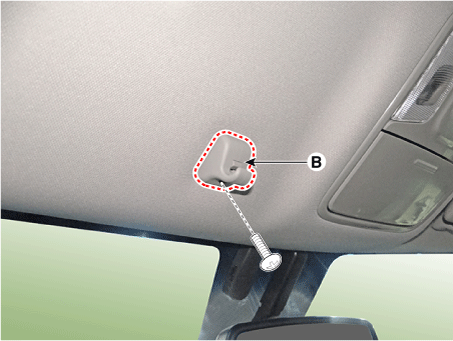

2.	Remove the sunvisor (A) and retainer (B) after loosening the screws.

Install in the reverse order of removal.

Replace any damaged clips.
