Kia Sportage QL (2015-2026) Service Manual / Brake System / Brake System / Stop lamp switch Components and components location

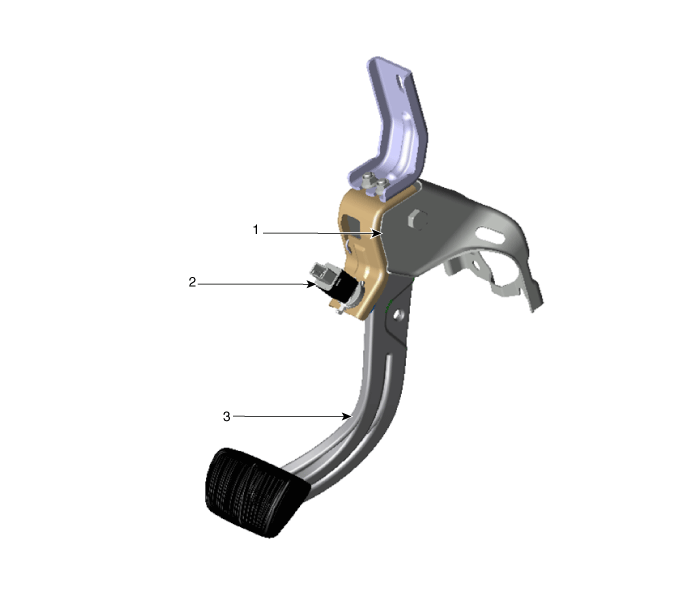

Components

1. Brake pedal member assembly
2. Stop lamp switch

3. Brake pedal arm

Rear Disc Brake Repair procedures

Removal [Not applied for EPB] Brake Pad 1. Remove the rear wheel and tire (A) from front hub. Tightening torque: 107.9 ...

Stop lamp switch Schematic diagrams

Schematic Diagram System circuit diagram Terminal function Teminal Description 1 IGN1 ...
