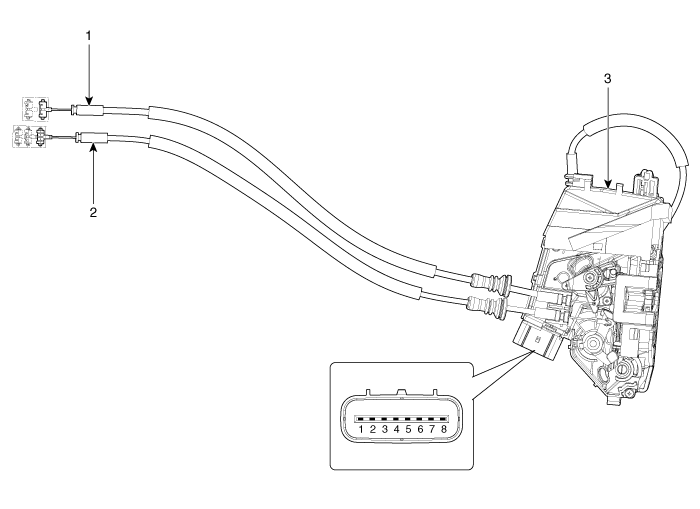

Components

1. Door lock/unlock knob cable
2. Door inside handle cable

3. Door latch assembly

Components and components location

Component Location 1. Driver power window switch 2. Assist power window switch 3. Smart junction block (SJB) 4. Door lock knob 5. Tailgate actuator ...

Power Door Lock Module Repair procedures

Inspection • When removing with a flat-tip screwdriver or remover, wrap protective ...
