Kia Sportage: Gauges / Speedometer

Kia Sportage QL (2015-2021) Owners Manual / Features of your vehicle / Instrument cluster / Gauges / Speedometer

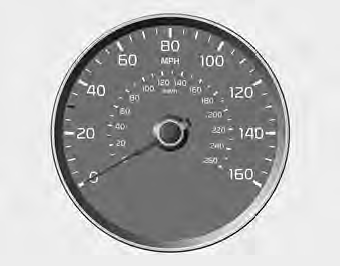

The speedometer indicates the speed of the vehicle and is calibrated in miles per hour (mph) and/or kilometers per hour (km/h).
