Kia Sportage: Gauges / Tachometer

Kia Sportage QL (2015-2025) Owners Manual / Features of your vehicle / Instrument cluster / Gauges / Tachometer

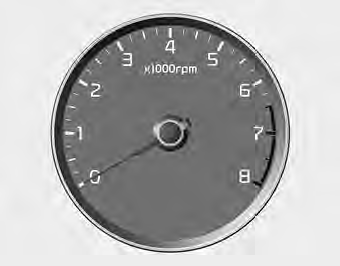

The tachometer indicates the approximate number of engine revolutions per minute (rpm).

Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.

CAUTION - Red zone

Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.
