Special Service Tools
Tool Name / Number
Illustration
Description
Engine support fixture (bar)
09200-3N000


Used for holding engine assembly when removing / installing transaxle
Used with the supporter (09200-2S000)
Engine support fixture (supporter)
A : 09200-2S000
B : 09200-2S100
C : 09200-2S200

Used for holding engine assembly when removing / installing transaxle
Used with the bar (09200-3N000)
Handle
09231-H1100

Used with the oil seal installer when installing differential oil seal
Oil seal installer
09453-3L241

Used for installing oil seal of transaxle case side
Used with the handle (09231-H1100)
Oil seal installer
09453-2W100

Used for installing oil seal of converter housing side
Used with the handle (09231-H1100)
Inhibitor switch guide pin
09480-A3800

Used for fixing "N" range when installing inhibitor switch

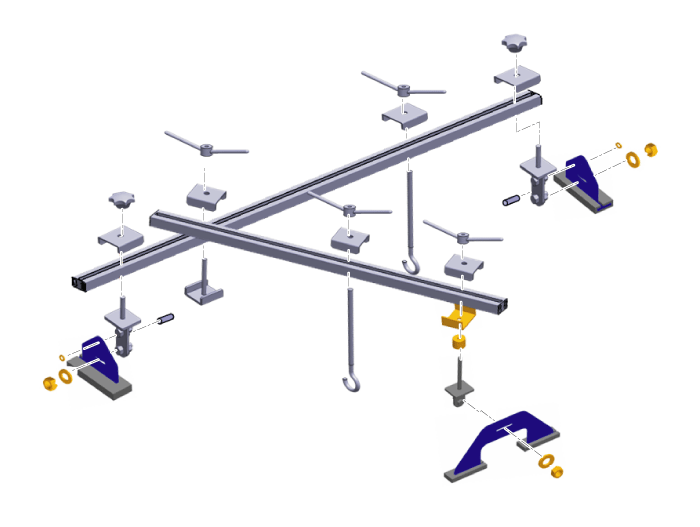

Engine support fixture assembly drawing
