Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering column shroud panel.
(Refer to Body - "Steering Column Shroud Panel")
3.

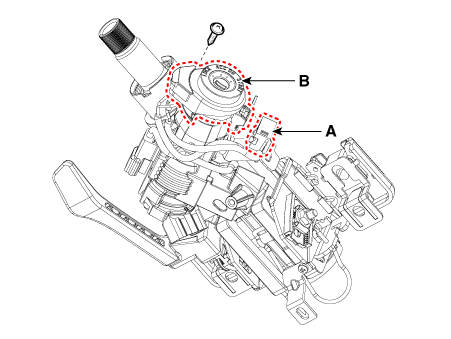

Disconnect the 6P connector (A) of the coil antenna and then remove the antenna coil (B) after loosening a screw.

Installation
1.
Install the coil antenna and connect the 6P connector.
2.
Install the steering column shroud panel.
3.
Connect the negative (-) battery terminal.
