Kia Sportage: Smart Parking Assist System (SPAS) / Smart Parking Assist System Unit Schematic diagrams

Kia Sportage QL (2015-2026) Service Manual / Body Electrical System / Smart Parking Assist System (SPAS) / Smart Parking Assist System Unit Schematic diagrams

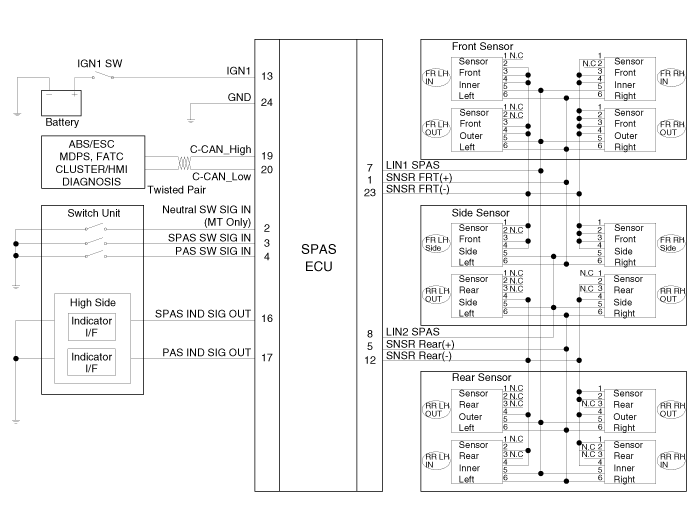

Circuit Diagram

Smart Parking Assist System Unit Components and components location
Component ...

Smart Parking Assist System Unit Repair procedures
Removal    • When prying with a flat-tip screwdriver, wrap it with protective tap ...
