Kia Sportage: Smart Parking Assist System (SPAS) / Smart Parking Assist System Unit Components and components location

Kia Sportage QL (2015-2019) Service Manual / Body Electrical System / Smart Parking Assist System (SPAS) / Smart Parking Assist System Unit Components and components location

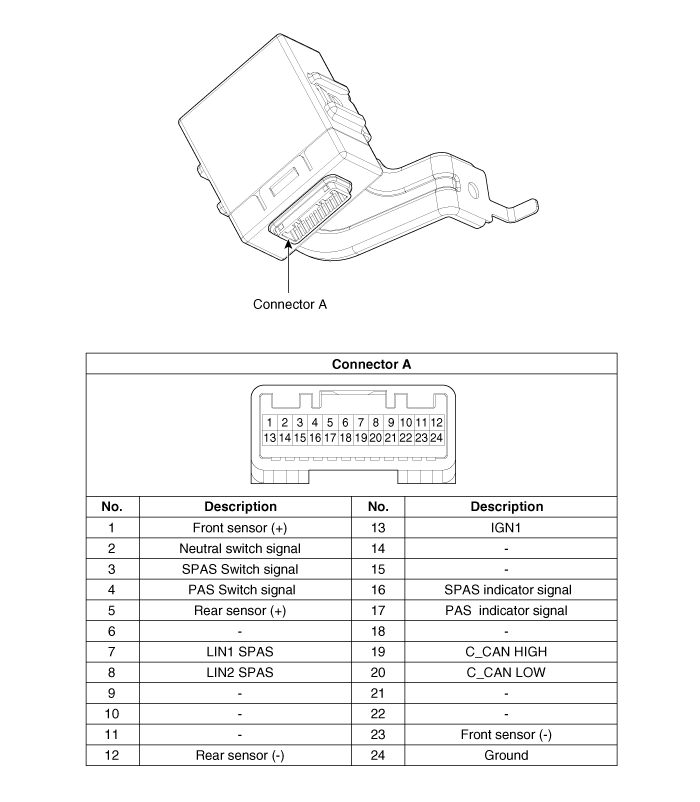

Component

Description and operation
Description Operation procedure (Perpendicular/parallel parking) 1. Select the parking mode by operating sub system switch (A) in the parking direction while ...

Smart Parking Assist System Unit Schematic diagrams
Circuit Diagram ...
