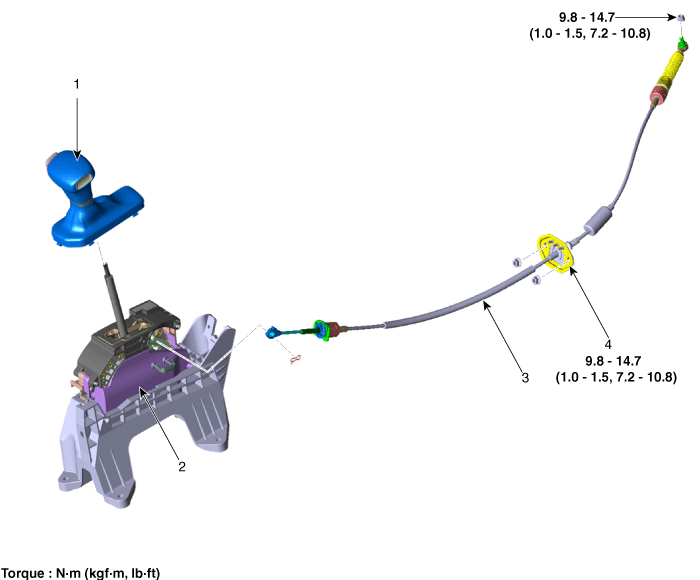

Components

1. Shift lever knob & boots
.2. Shift lever assembly

3. Shift cable assembly
4. Shift cable retainer

Shift Lever Repair procedures

Removal 1. Shift the gear to "N". 2. Remove the knob & boots (A) by pulling the direction of arrow after removing the ...

Shift Cable Repair procedures

Removal 1. Shift the gear to "N". 2. Remove the air cleaner assembly and air duct. (Refer to Engine Mechnical System ...
