Kia Sportage: Front seat adjustment - power / Seat height

Kia Sportage QL (2015-2025) Owners Manual / Safety features of your vehicle / Seat / Front seat adjustment - power / Seat height

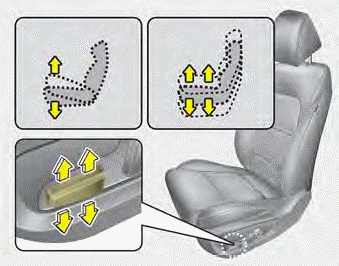

Pull the front portion of the control switch up to raise or press down to lower the front part of the seat cushion. Pull the rear portion of the control switch up to raise or press down to lower the seat cushion. Release the switch once the seat reaches the desired position.

Seatback angle

Push the control switch forward or backward to move the seatback to the desired angle. Release the switch once the seat reaches the desired position. ...

Lumbar support

The lumbar support can be adjusted by pressing the lumbar support switch on the side of the seat. 1. Press the front portion of the switch to increase support, or the rear portion of the switch ...
