Kia Sportage: Front seat adjustment - manual / Seat height

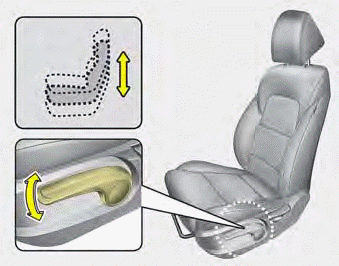

To change the height of the seat, push the lever upwards or downwards.
- To lower the seat cushion, push the lever down several times.
- To raise the seat cushion, pull the lever up several times.
To recline the seatback:
1. Lean forward slightly and lift up the seatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to the
position you desire.
3. R ...
The lumbar support can be adjusted by pressing the lumbar support switch on the
side of the seat.
1. Press the front portion of the switch to increase support, or the rear portion
of the switch ...
