Kia Sportage: Light bulbs / Personal lamp bulb replacement

Kia Sportage QL (2015-2023) Owners Manual / Maintenance / Light bulbs / Personal lamp bulb replacement

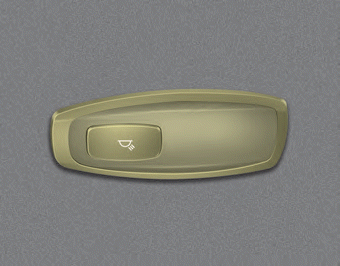

If the personal lamp (LED) does not operate, we recommend that you have your vehicle checked by an authorized Kia dealer.

Room lamp bulb replacement
WARNING Prior to working on the Interior lamps, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock. 1. Using a flat-blade screwdriver, gen ...

Glove box lamp bulb replacement
1. Using a flat-blade screwdriver, gently pry the lamp assembly from interior. 2. Remove the bulb by pulling it straight out. 3. Install a new bulb in the socket. 4. Install the lamp assembly to ...
