Kia Sportage: Intake And Exhaust System / Muffler Components and components location

Kia Sportage QL (2015-2024) Service Manual / Engine Mechanical System / Intake And Exhaust System / Muffler Components and components location

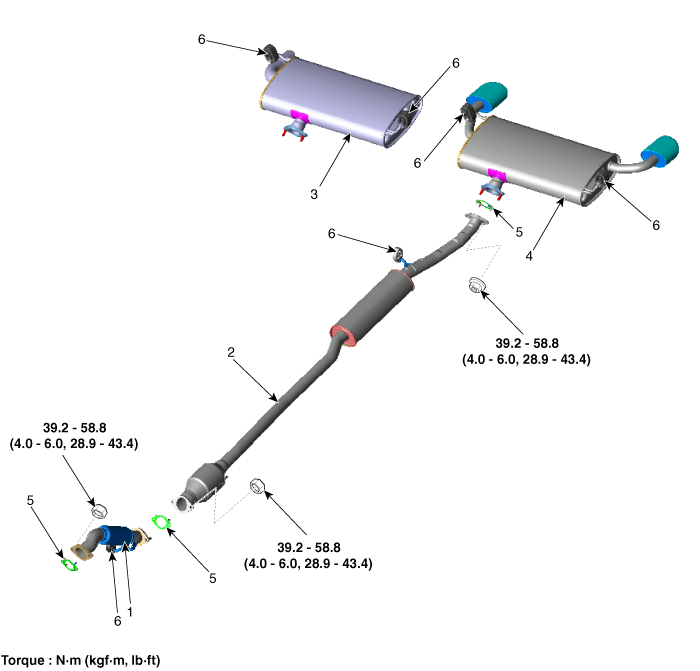

Components

1. Front muffler
2. Catalytic converter & Center muffler assembly
3. Rear muffler [Single tail type]

4. Rear muffler [Dual tail type]
5. Gasket
6. Hanger
