Removal

In case of bad quality or poor focus, be sure to check the camera lense surface condition and foreign materials.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the tailgate trim.
(Refer to Body - "Tail Gate Trim")
3.

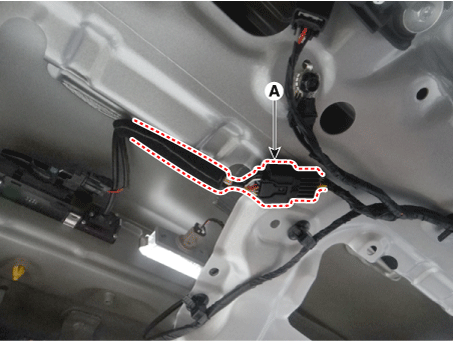

Disconnect the rear view camera connector (A).

4.

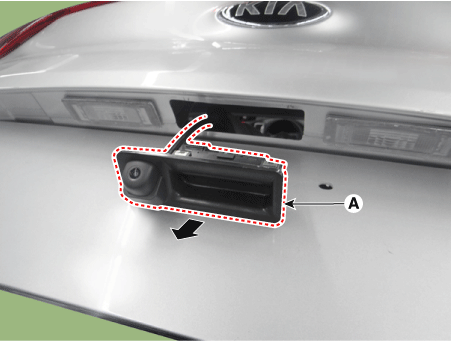

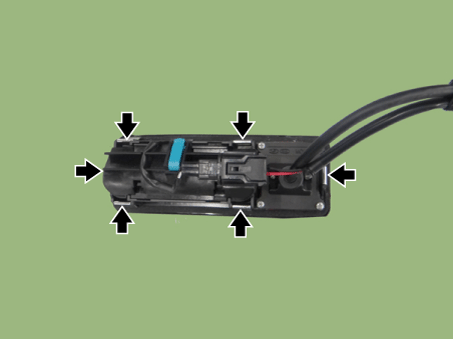

Remove the rear view camera assembly (A) by pushing the locking pin.

Installation
1.
Install the rear view camera assembly.
2.
Install the tailgate trim.
3.
Connect the negative (-) battery terminal.
Description and operation
Description Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental system t ...
