Kia Sportage: AVN System / AVN Remote Controller Schematic diagrams

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / AVN System / AVN Remote Controller Schematic diagrams

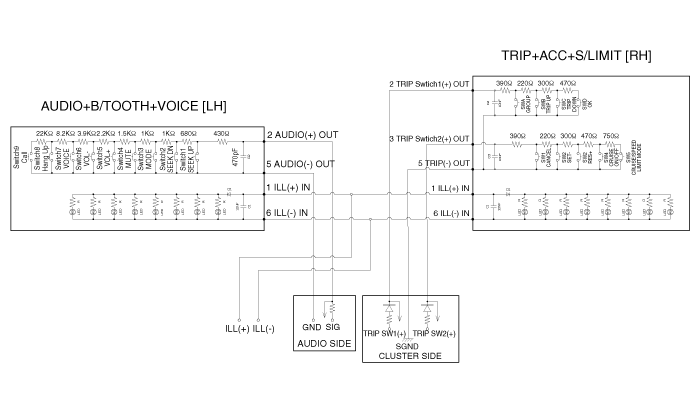

Circuit Diagram

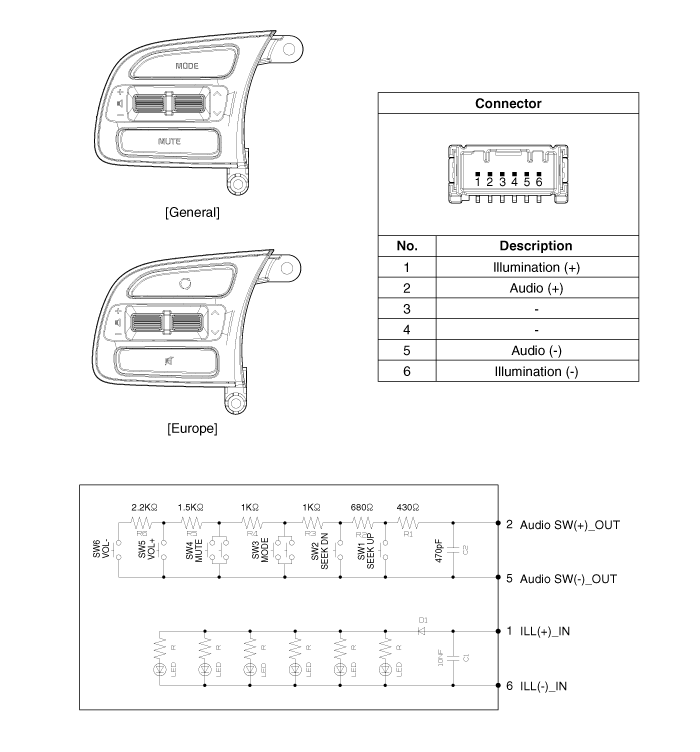

[Audio]

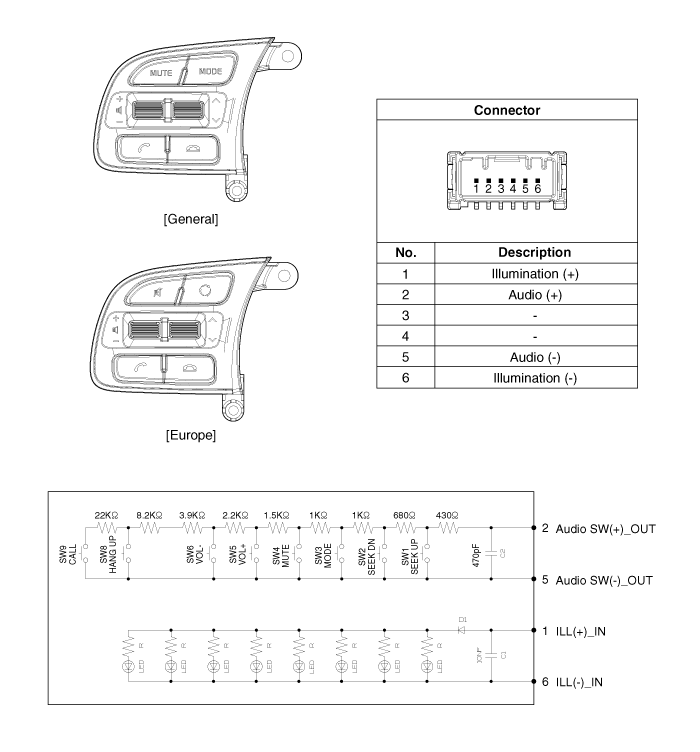

[Audio + Bluetooth]

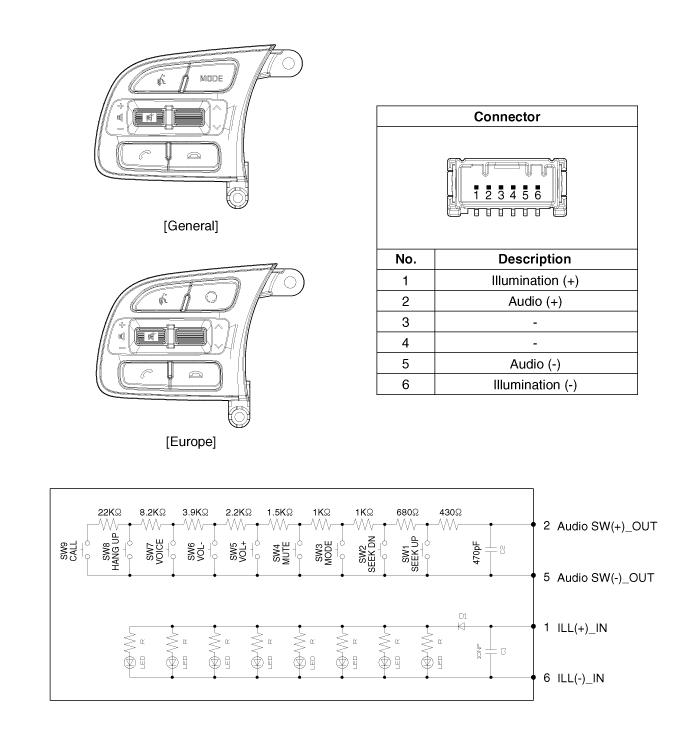

[Audio + Bluetooth + Voice]

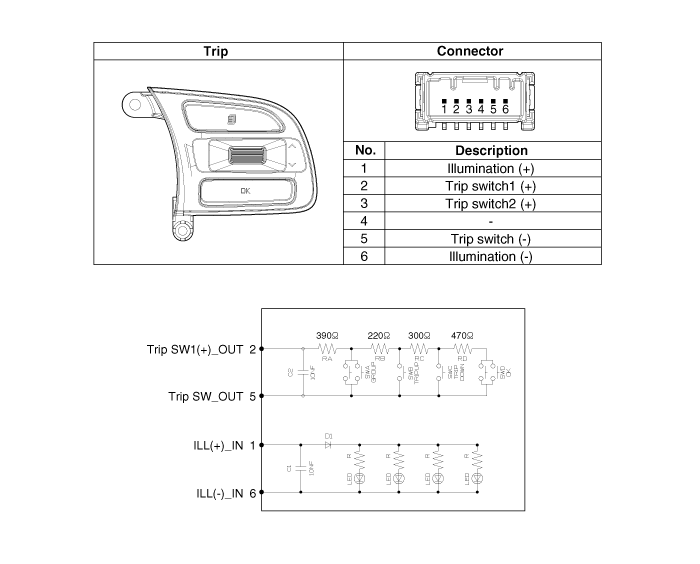

[Trip]

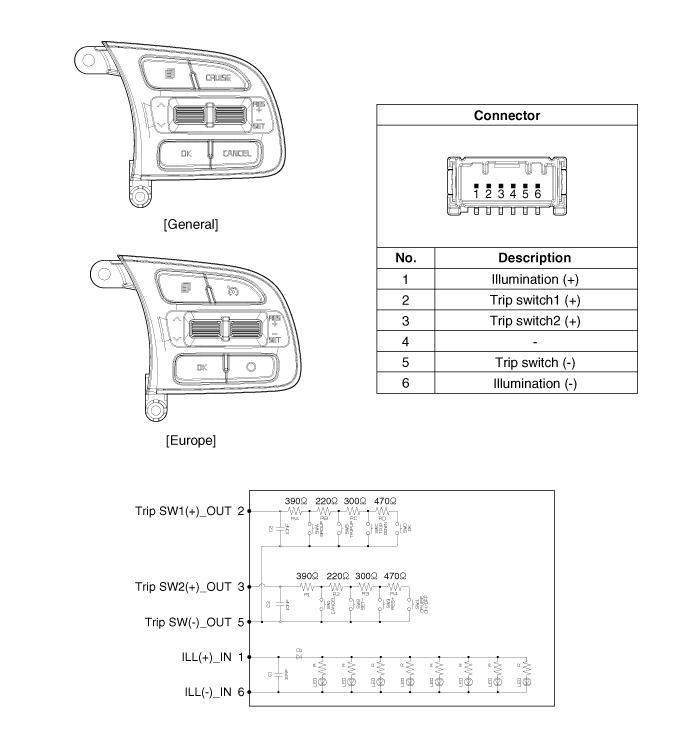

[Trip + ACC]

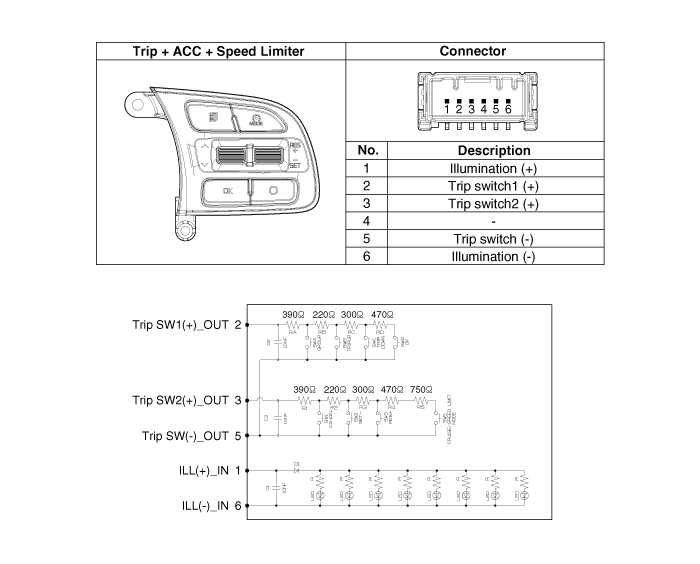

[Trip + ACC + Speed Limiter]

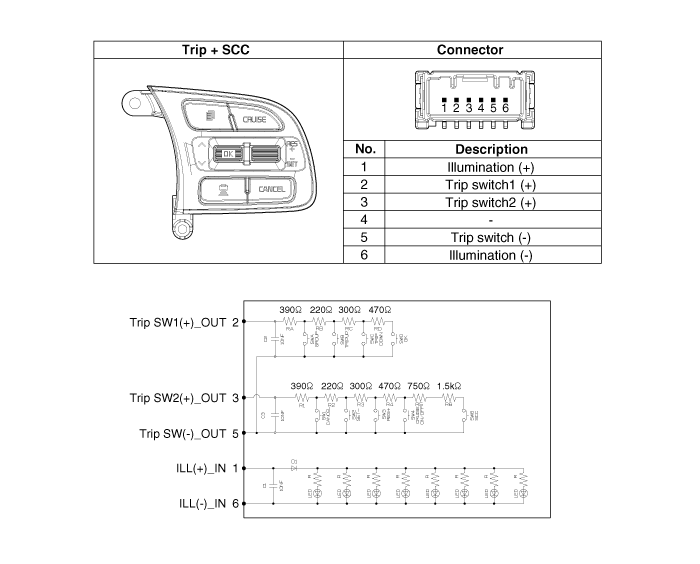

[Trip + SCC]

AVN Remote Controller Components and components location
Components 1. Left Remote Control Switch (Audio + Hands free) 2. Right Remote Control Switch (Cruise+Trip Computer) ...

AVN Remote Controller Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] Switch ...
