Kia Sportage: Body Side Molding / Repair procedures

Kia Sportage QL (2015-2025) Service Manual / Body (Interior and Exterior) / Body Side Molding / Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.

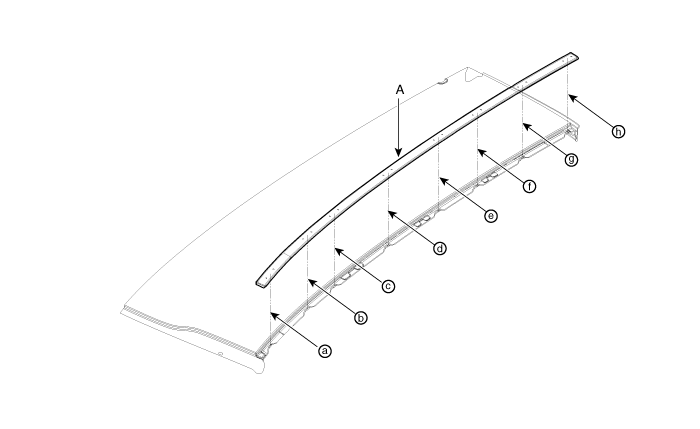

Using a remover, remove the roof side molding (A).

Always replace the roof side molding with a new one.

2.
Install in the reverse order of removal.

First assemble the clip ⓐ and then assemble the other clips from the ⓐ to ⓗ direction in sequence order.
