Removal

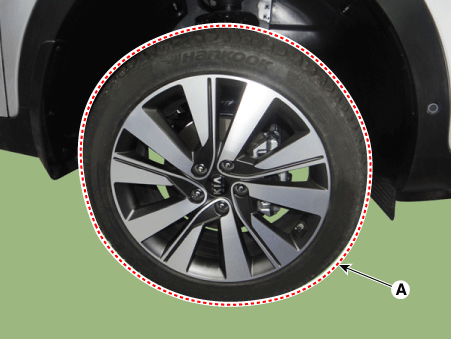

Remove wheel nuts, wheel and tire (A) from hub.

Tightening torque:

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)

Be careful not to damage the hub bolts when removing the wheel & tire.

2.	Remove the rear brake caliper. (Refer to Brake System - "Rear Disc Brake")

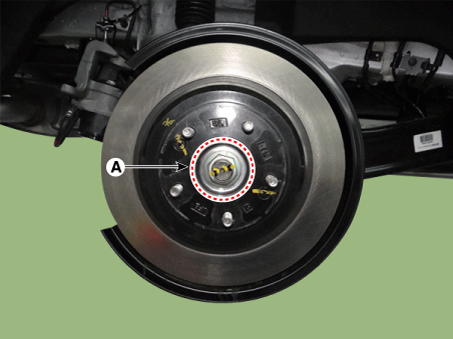

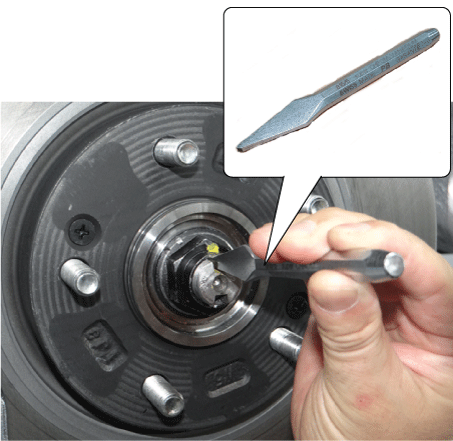

By hammering on a chisel, unlock the driveshaft lock hub nut caulking.

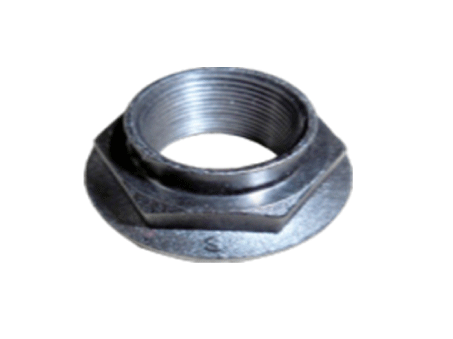

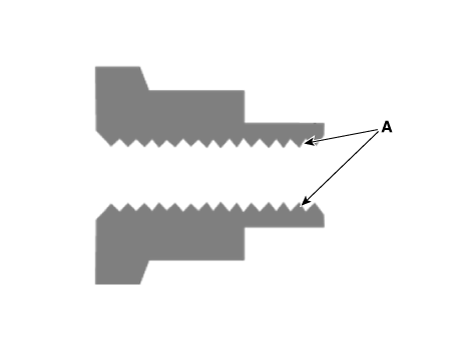

If there is screw thread (A) on the end of the nut, unlock the caulking by using a chisel and then loosen the nut to prevent damaging driveshaft screw thread.

Loosen the rear axle caulking nut (A).

Tightening torque:

294.2 - 313.8 N·m (30.0 - 32.0 kgf·m, 217.0 - 231.5 lb·ft)

•	The driveshaft lock nut must be replaced with new one. When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.

•	Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.

•

If there are two key seats, perform on all two seats.

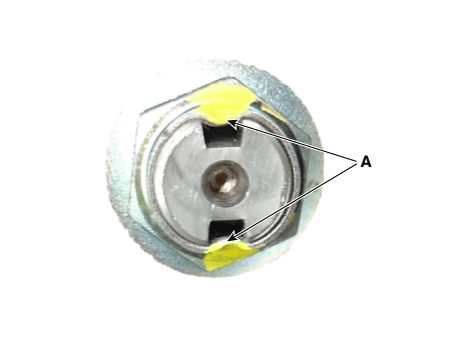

Caulking depth (A) : 1.5 mm MIN. (0.0591 in.)

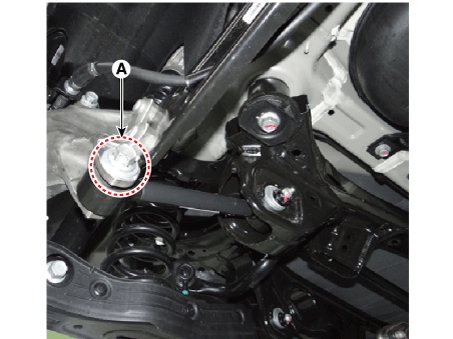

Loosen the lower arm bolt & nut (A).

Tightening torque:

137.3 - 156.9 N·m (14.0 - 16.0 kgf·m, 101.3 - 115.7 lb·ft)

Certainly install jack as being danger because of the tension.

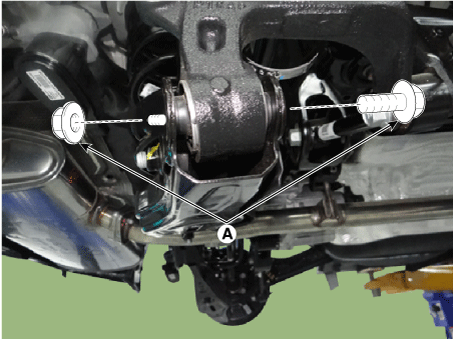

Loosen the assist arm bolt (A).

Tightening torque:

137.3 - 156.9 N·m (14.0 - 16.0 kgf·m, 101.3 - 115.7 lb·ft)

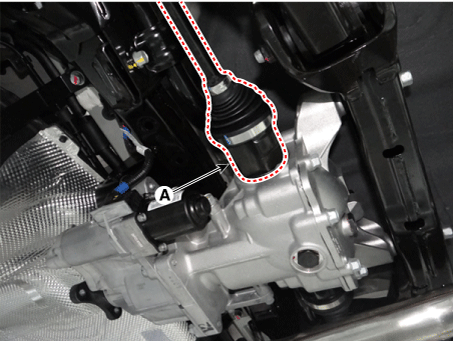

Remove the rear drive shaft (A).

•	Use a pry bar being careful not to damage the transaxle and joint.

•	Do not insert the pry bar too deep, as this may cause damage to the oil seal.

•	Do not pull the driveshaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.

•	Plug the hole of the transaxle case with the oil seal cap to prevent contamination.

•	Support the driveshaft properly.

•	Replace the retainer ring whenever the driveshaft is removed from the differential case.

8.	Install in the reverse order of removal.
