Kia Sportage QL (2015-2021) Service Manual / Driveshaft and axle / Rear Driveshaft Assembly / Rear Driveshaft Assembly / Components and components location

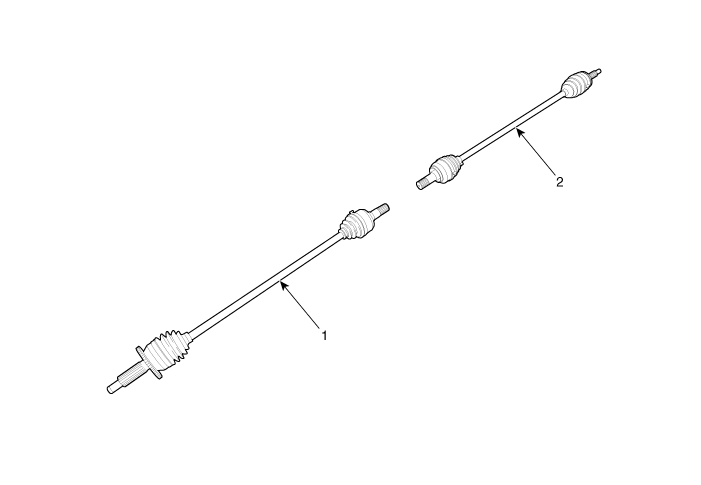

Component Location

1. Rear drive shaft (LH)

2. Rear drive shaft (RH)

Rear Driveshaft Assembly / Rear Driveshaft Assembly

...

Repair procedures

Removal 1. Remove wheel nuts, wheel and tire (A) from hub. Tightening torque: 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 9 ...
