Kia Sportage: Fuel Delivery System / Fuel Pressure Sensor (FPS) Specifications

Kia Sportage QL (2015-2026) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pressure Sensor (FPS) Specifications

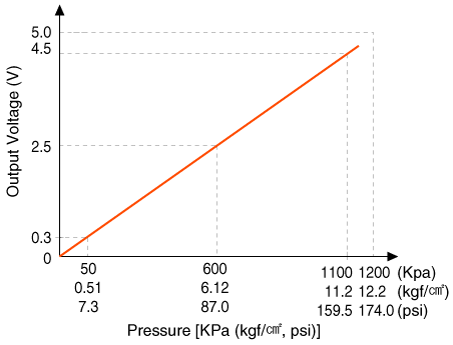

Specification

Pressure [kPa (kgf/cm², psi)]	Output Voltage (V)
50 (0.51, 7.3)	0.3
600 (6.12, 87.0)	2.5
1100 (11.2, 159.5)	4.5

Fuel Pump Control Module (FPCM) Repair procedures

Removal 1. Release the residual pressure in fuel line. (Refer to the Fuel Delivery System - Repair Procedures - "Release Residual Pressure in Fuel L ...

Fuel Pressure Sensor (FPS) Description and operation

Description The fuel pressure sensor (FPS) is installed on the top of the low pressure fuel pump and measures the pressure in the low pressure fuel line.Based on the fuel pressur ...
