Kia Sportage: Rear Seat / Rear Seat Back Cover Components and components location

Kia Sportage QL (2015-2025) Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Back Cover Components and components location

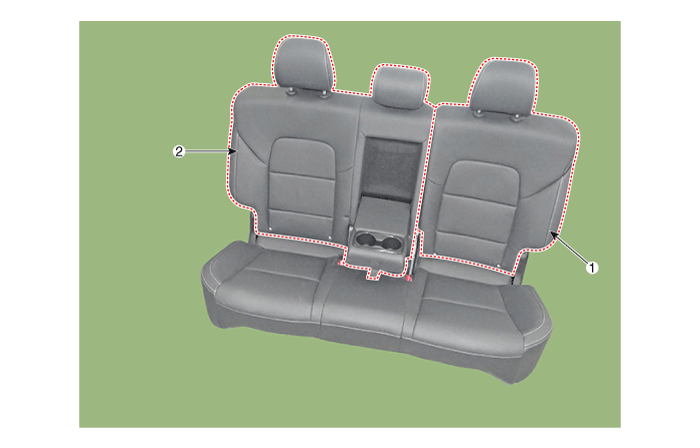

Component Location

1. Rear seat back cover [LH]

2. Rear seat back cover [RH]
