Kia Sportage: Gauges / Fuel Gauge

Kia Sportage QL (2015-2019) Owners Manual / Features of your vehicle / Instrument cluster / Gauges / Fuel Gauge

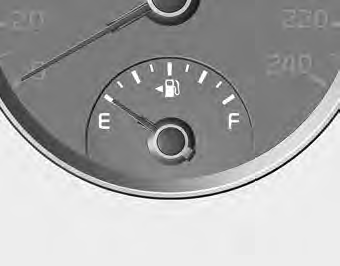

This gauge indicates the approximate amount of fuel remaining in the fuel tank.

✽ NOTICE

WARNING - Fuel gauge

Stop and obtain additional fuel as soon as possible after the warning light comes on or when the gauge indicator comes close to the E level. Running out of fuel can expose vehicle occupants to danger.

CAUTION - Low fuel

Avoid driving with an extremely low fuel level. Running out of fuel could cause the engine to misfire damaging the catalytic converter.

✽ NOTICE

Fuel display may not be accurate if you are filling in sloping places.
