Kia Sportage: Rear Seat / Rear Seat Assembly Repair procedures
[Rear seat cushion assembly]
1. |
Separate the rear seat cushion assembly (A).
![](images/rear_seat_assembly_repair_procedures-1360/601/sqlbd6364d.gif)
|
2. |

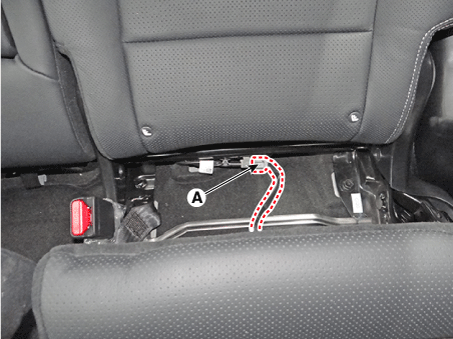

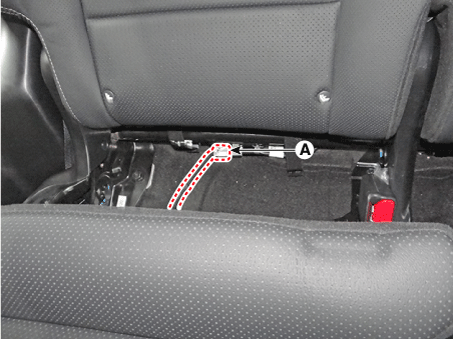

Disconnect the rear seat heater connector (A).
[LH]
![](images/rear_seat_assembly_repair_procedures-1360/601/sqlbd6365d.gif)
![](images/rear_seat_assembly_repair_procedures-1360/601/sqlbd6366d.gif)
|
3. |

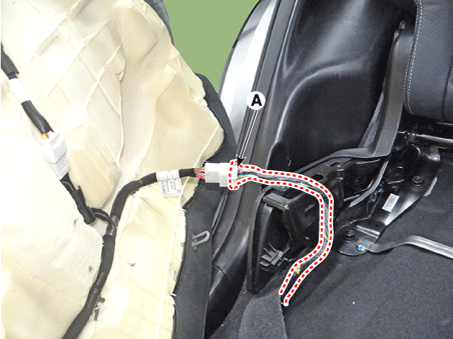

Disconnect the rear seat main wiring connector (A).
![](images/rear_seat_assembly_repair_procedures-1360/601/sqlbd6367d.gif)
|
4. |
Install in the reverse order of removal.
Make sure that the connector is connected properly.
|
|
[Rear seat back assembly]
1. |
Remove the rear seat cushion assembly (A).
|
2. |

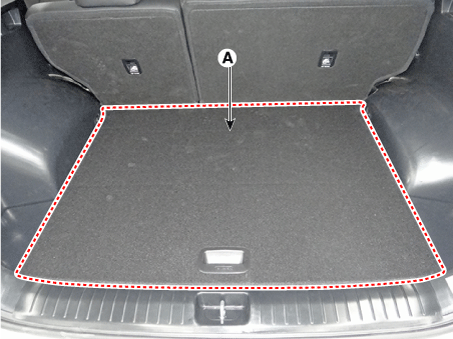

Remove the luggage board (A).
![](images/rear_seat_assembly_repair_procedures-1360/601/sqlbd6313d.gif)
|
3. |

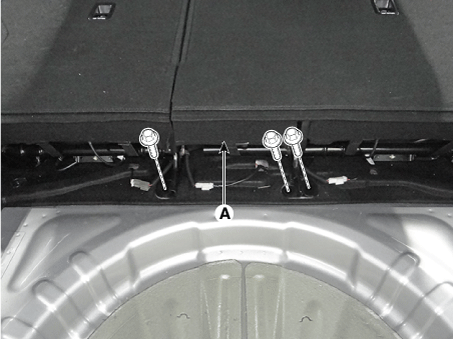

Remove the rear seat back (A) after loosening the mounting bolts.
Tightening torque :
44.1 - 58.8 N·m (4.5 - 6.0 kgf·m, 32.5 - 43.4 lb·ft)
|
[Rear]

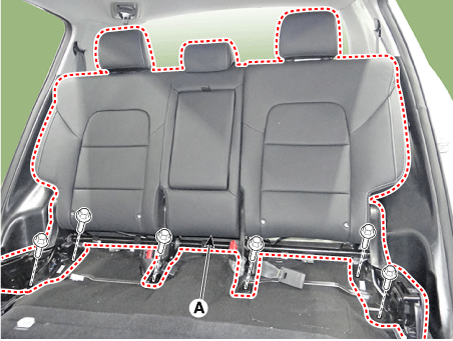

![](images/rear_seat_assembly_repair_procedures-1360/601/sqlbd6369d.gif)
[Front]
![](images/rear_seat_assembly_repair_procedures-1360/601/sqlbd6368d.gif)
|
4. |
Install in the reverse order of removal.
•
|
Make sure the connector is connected properly.
|
•
|
Replace any damaged clips.
|
|
|
Component Location
1. Rear seat cushion assembly
2. Rear seat back assembly
...
Component Location
1. Rear seat back cover [LH]
2. Rear seat back cover [RH]
...
