Kia Sportage: Rear Door / Rear Door Side Weatherstrip Repair procedures

Kia Sportage QL (2015-2022) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Side Weatherstrip Repair procedures

Replacement
1.

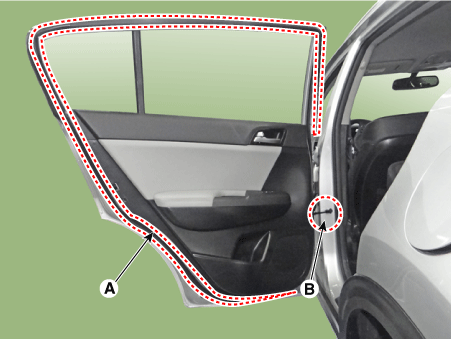

Loosen the rear door checker (B) mounting bolt.
Tightening torque :
21.6 - 32.4 N·m (2.2 - 3.3 kgf·m,15.9 - 23.9 lb·ft)
2.
Detach the clips, remove the rear door side weatherstrip (A).

3.
Install in the reverse order of removal.

Replace any damaged clips.
