Kia Sportage: Seat belt restraint system / Rear center seatbelt

Kia Sportage QL (2015-2019) Owners Manual / Safety features of your vehicle / Seat belts / Seat belt restraint system / Rear center seatbelt

To fasten your seatbelt:

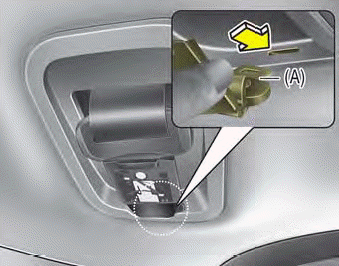

1. Extract the tongue plate (A) from the hole on the belt assembly cover.

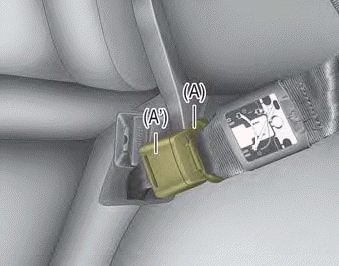

2. Insert the tongue plate (A) into the buckle (A’) until an audible “click" is heard, indicating the latch is locked. Make sure the belt is not twisted.

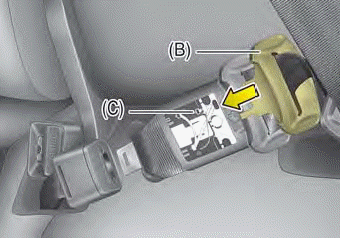

3. Pull out the tongue plate (B) from the pocket (C).

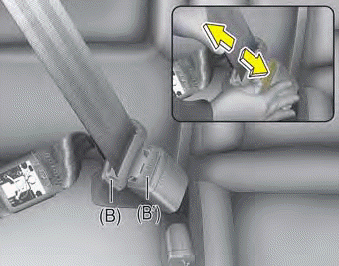

4. Pull the tongue plate (B) and insert it into the buckle (B’) until an audible “click” is heard, indicating the latch is locked. Make sure the belt is not twisted.

When using the rear center seat belt, the buckle with the “CENTER” mark must be used.

✽ NOTICE

If you are not able to pull out the safety belt from the retractor, firmly pull the belt out and release it. After release, you will be able to pull the belt out smoothly.

To release your seatbelt:

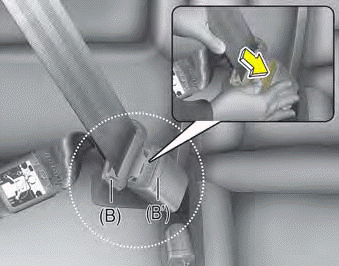

1. Press the release button on the buckle (B’) and remove the tongue plate (B).

2. Insert the tongue plate (B) into the pocket (C)

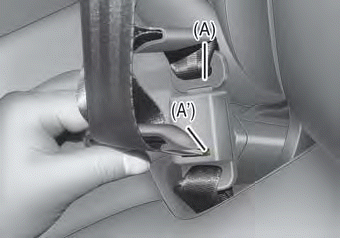

3. To retract the rear center seatbelt, insert the tongue plate into the web release hole (A'). Pull up on the seat belt web and allow the webbing to retract automatically.

4. Insert the tongue plate (A) into the hole on the belt assembly cover.
