Kia Sportage: Body Side Molding / Quarter Garnish Repair procedures

Kia Sportage QL (2015-2020) Service Manual / Body (Interior and Exterior) / Body Side Molding / Quarter Garnish Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.

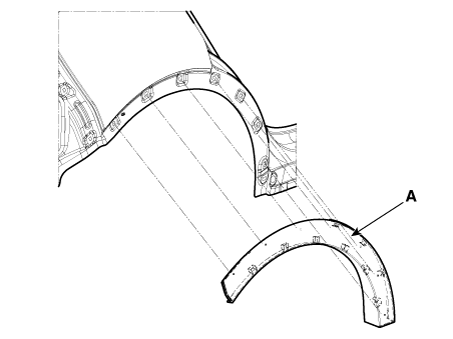

Using a remover, remove the fender garnish (A).

2.
Install in the reverse order of removal.

Replace any damaged clips.
