Kia Sportage: Smart Parking Assist System (SPAS) / Smart Parking Assist System Switch Repair procedures

Kia Sportage QL (2015-2025) Service Manual / Body Electrical System / Smart Parking Assist System (SPAS) / Smart Parking Assist System Switch Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the console upper cover. (Refer to Body - "Floor Console Assembly")

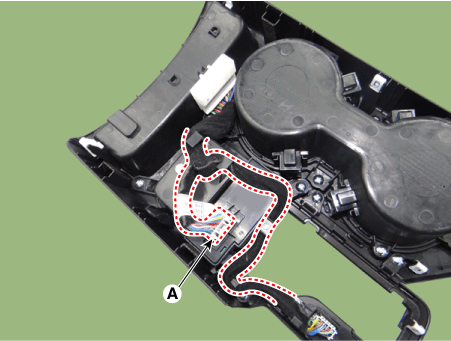

3.	Disconnect the console upper cover switch connector (A).

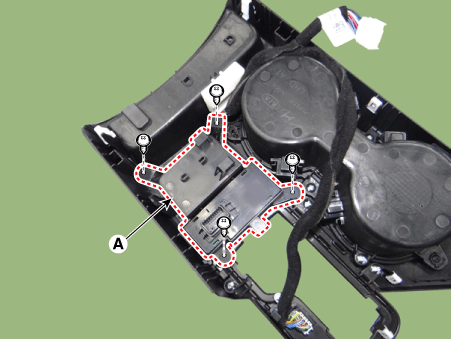

Remove the console upper cover switch (A) after loosening the screws.

Put on gloves to prevent hand injuries.

Installation

1.	Install the console upper cover switch.

2.	Install the console upper cover.

3.	Connect the negative (-) battery terminal.

Smart Parking Assist System Switch Schematic diagrams

Circuit Diagram ...

Smart Parking Assist System Sensor Components and components location

Component ...
