Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front / rear bumper cover. (Refer to Body - "Front Bumper Cover") (Refer to Body - "Rear Bumper Cover")

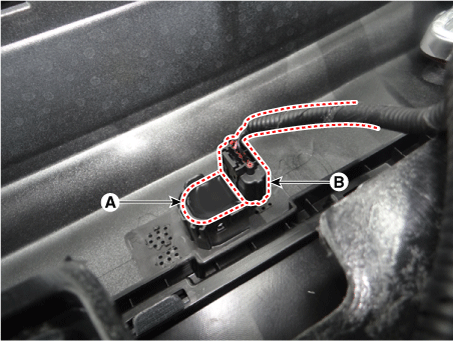

3.	Disconnect the connector (B) from the parking assist sensor (A).

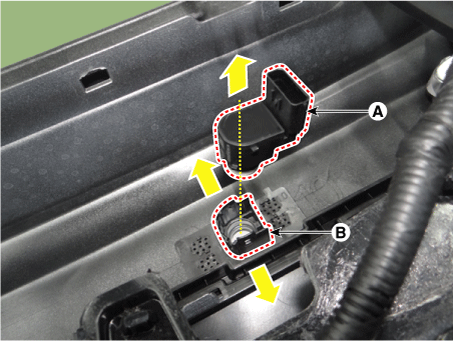

4.	Remove the sensor (A) by pulling out both ends of the sensor holder (B).

Installation

1.	Install the rear ultra sensor after connecting the connector.

2.	Install the bumper cover.

3.	Connect the negative (-) battery terminal.
