Kia Sportage: Front / Rear Parking Assist System / Front Rear Parking Assist System Switch Components and components location

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Front / Rear Parking Assist System / Front Rear Parking Assist System Switch Components and components location

Component

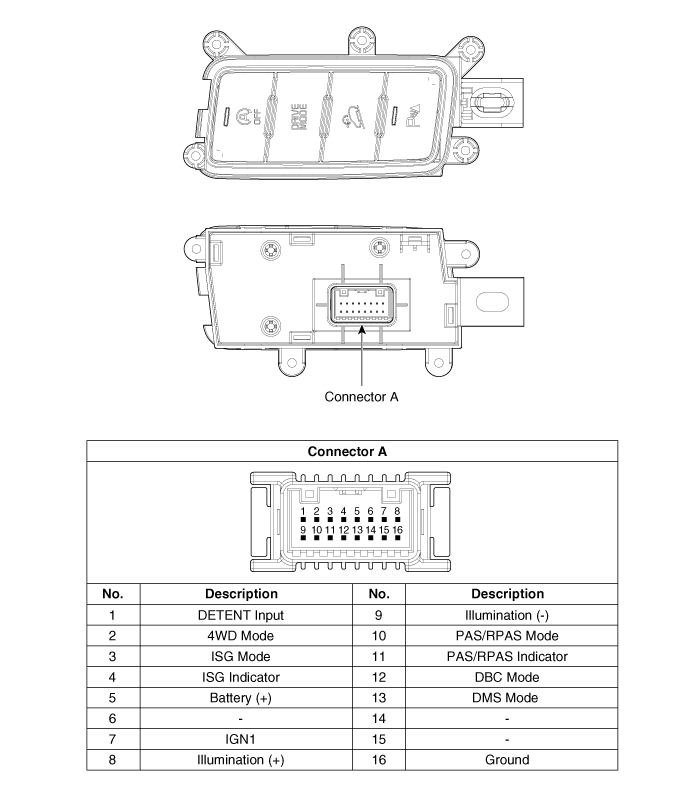

Automatic Transmission type

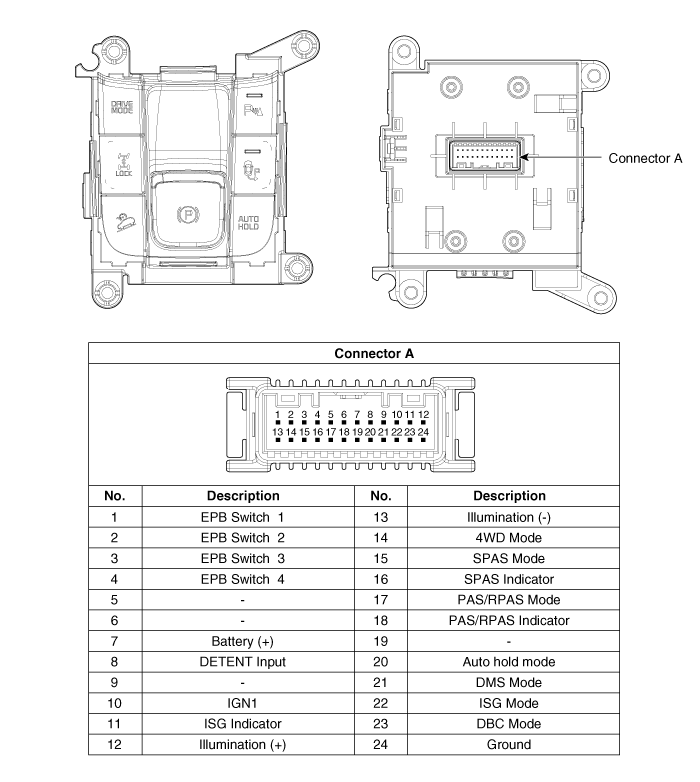

Manual Transaxle type

Parking Assist Sensor Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front / rear bumper cover. (Refer to Body - "Front ...

Front Rear Parking Assist System Switch Schematic diagrams

Circuit Diagram Automatic Transaxle type Manual Transaxle type ...
