Description

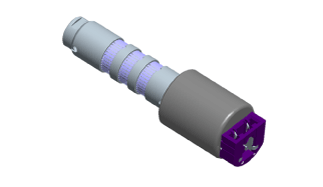

Overdrive clutch control solenoid valve is a Variable Force Solenoid (VFS) type.
When TCM supplies variable current to solenoid valve, hydraulic pressure of underdrive brake is controlled by solenoid valve.

Overdrive clutch control solenoid valve operation table

OD/C_VFS
N/H
N, P

1
Δ
2

3

4

5

6

R


● : Connected status
Δ : Connected at vehicle speed above 8km/h
Overdrive Clutch Control Solenoid Valve (OD/C_VFS) Components and components location
Component Location 1. 26 Brake Control Solenoid Valve (26/B) 2. 35R Clutch Control Solenoid Valve (35R/C) 3. Underdrive Brake Control Solenoid Valve (UD/B) ...

Overdrive Clutch Control Solenoid Valve (OD/C_VFS) Schematic diagrams
Circuit Diagram ...
