Kia Sportage: Gauges / Odometer

Kia Sportage QL (2015-2025) Owners Manual / Features of your vehicle / Instrument cluster / Gauges / Odometer

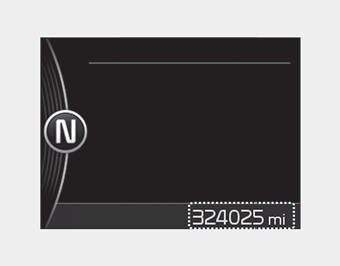

The odometer Indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

- Odometer range : 0 ~ 999,999 miles or 1,599,999 km.

Fuel Gauge
This gauge indicates the approximate amount of fuel remaining in the fuel tank. ✽ NOTICE The fuel tank capacity is given in chapter 9. The fuel gauge is supplemented by a low fuel warning l ...

Outside Temperature Gauge
This gauge indicates the current outside air temperatures by 1°F (1°C). - Temperature range : -40°F ~ 185°F (-40°C ~ 85°C) The outside temperature on the display may not change immediately l ...
