Kia Sportage: Heating and air conditioning / Mode selection
.png)

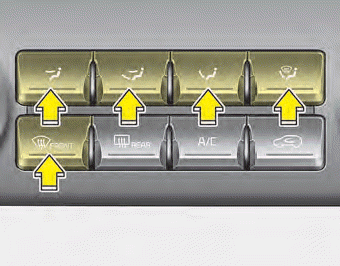

The mode selection button controls the direction of the air flow through the
ventilation system.
Air can be directed to the floor, dashboard outlets, or windshield. Five symbols
are used to represent MAX A/C, Face, Bi-Level, Floor, Floor- Defrost and Defrost
air position.
The MAX A/C mode is used to cool the inside of the vehicle faster.
Face-Level (B, D, F)
.png)
Air flow is directed toward the upper body and face. Additionally, each outlet
can be controlled to direct the air discharged from the outlet.
Bi-Level (B, C, D, E, F)
.png)
Air flow is directed towards the face and the floor.
Floor-Level (A, C, D, E, F)
.png)
Most of the air flow is directed to the floor, with a small amount of the air
being directed to the windshield and side window defrosters.
Floor/Defrost-Level (A, C, D, E, F)
.png)
Most of the air flow is directed to the floor and the windshield with a small
amount directed to the side window defrosters.
Defrost-Level (A, D)
.png)
Most of the air flow is directed to the windshield with a small amount of air
directed to the side window defrosters.
✽ NOTICE - 2nd row outlet vents (E,F)
- The air flow of the 2nd row outlet vents is controlled by the front
climate control system and delivered through the inside air duct of the floor
(E, F).
- The air flow of the 2nd row outlet vents (E, F) may be weaker than
the instrument panel vents for the long air duct.
1. Start the engine.
2. Set the mode to the desired position. For improving the effectiveness of heating
and cooling;
- Heating:
- Cooling:
3. Set the temperature control to the desired positi ...
The MAX A/C mode is used to cool the inside of the vehicle faster.
Air flow is directed toward the upper body and face.
In this mode, the air conditioning and the recirculated air position will be ...
