Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.

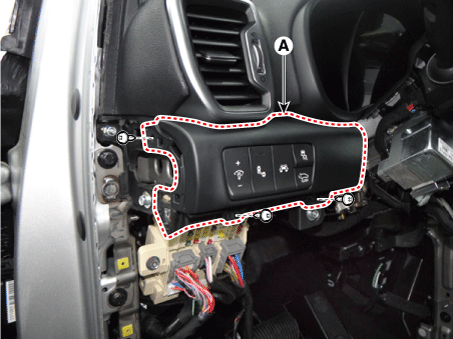

Remove the crash pad garnish[LH] (A) after loosening the screws.

4.

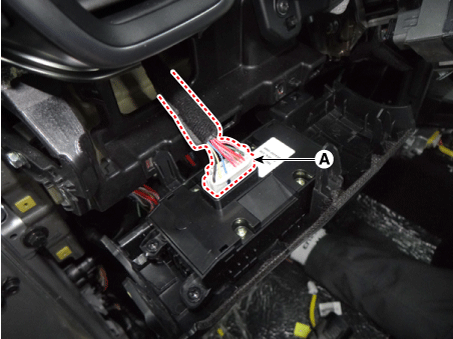

Disconnect the crash pad lower panel switch connector (A).

5.

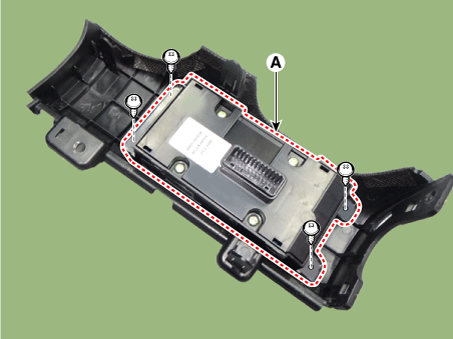

Remove the crash pad lower panel switch (A) after loosening the screws.

Installation
1.
Install the crash pad lower panel switch.
2.
Install the crash pad lower panel.
3.
Connect the negative (-) battery terminal.
Inspection
1.
Disconnect the BSD switch connector from the crash pad lower switch assembly.

2.

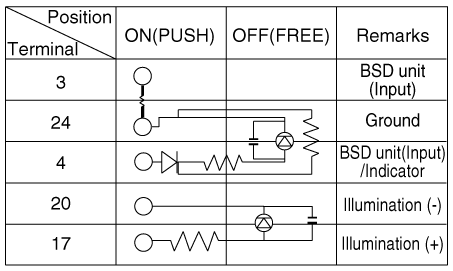

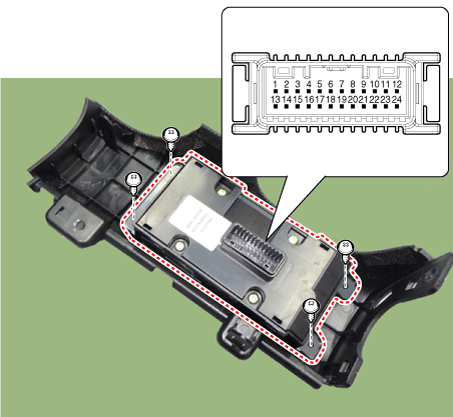

Operate the BSD switch, then check for continuity between terminals and BSD switch connector.
