Kia Sportage: Audio / Audio Unit Components and components location

Kia Sportage QL (2015-2024) Service Manual / Body Electrical System / Audio / Audio Unit Components and components location

Components

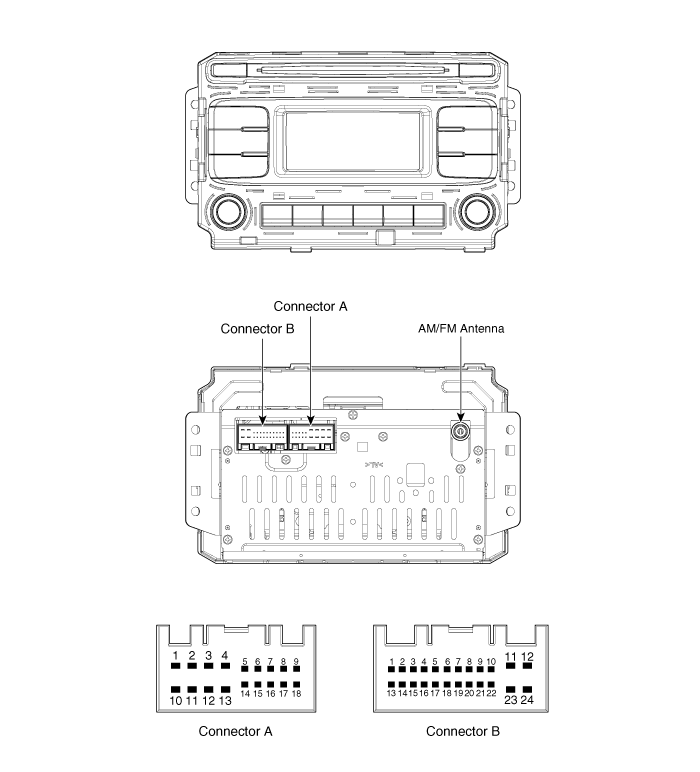

[AUDIO/CD/BLUETOOTH] (A Type)

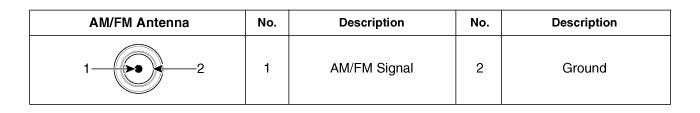

Connector Pin Information

No.	Connector A	Connector B
1	Rear door left speaker (+)	⁻
2	Front door left speaker(+)	⁻
3	Front door right speaker(+)	⁻
4	Rear door right speaker (+)	Steering wheel remote controller
5	⁻	⁻
6	⁻	USB Data (+)
7	⁻	USB VDD
8	Illumination (+)	AUX Right_input
9	Detent	AUX Ground
10	Rear door left speaker (-)	MIC (+)
11	Front door left speaker (-)	ACC
12	Front door right speaker (-)	Battery (+)
13	Rear door right speaker (-)	⁻
14	⁻	⁻
15	⁻	⁻
16	⁻	Vehicle speed
17	Illumination (-)	Steering wheel remote controller ground
18	Remote antenna	USB Data (-)
19		USB Ground
20		AUX Detect
21		AUX Left_input
22		MIC (-)
23		⁻
24		Power ground

[AUDIO/CD/BLUETOOTH] (B Type)

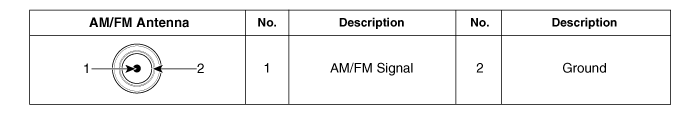

Connector Pin Information

NO.	Connector A		Connector B		Connector C
	External Amplifier	Internal Amplifier	External Amplifier	Internal Amplifier
1	⁻	Rear door left speaker (+)	Multimedia-CAN(High)		⁻
2	⁻	Front door left speaker (+)	⁻		⁻
3	⁻	Front door right speaker (+)	⁻		Camera ground
4	⁻	Rear door right speaker (+)	Steering wheel remote controller		Camera VIN
5	SPDIF Ground	⁻	⁻		⁻
6	SPDIF (-)	⁻	USB Data (+)		⁻
7	⁻		USB VDD		⁻
8	Illumination (+)		AUX Right_input		⁻
9	⁻		AUX Ground		⁻
10	⁻	Rear door left speaker (-)	MIC (+)		Camera battery (+)
11	⁻	Front door left speaker (-)	ACC		ground
12	⁻	Front door right speaker (-)	Battery (+)		⁻
13	⁻	Rear door right speaker (-)	Multimedia-CAN(Low)		⁻
14	⁻		⁻		⁻
15	SPDIF (+)	⁻	⁻		⁻
16	⁻		Vehicle speed		⁻
17	Illumination (-)		Steering wheel remote controller ground
18	Remote antenna		USB Data (-)
19			USB Ground
20			AUX Detect
21			AUX Left_input
22			MIC (-)
23			⁻
24			Power Ground

Components and components location

Component Location 1. Audio unit 2. Tweeter speaker 3. Front door speaker 4. Rear door speaker 5. Center speaker 6. Sub woofer speaker 7. Exter ...

Audio Unit Repair procedures

Removal • When removing with a flat-tip screwdriver or remover, wrap protective ...
