Kia Sportage: Automatic Transaxle Control System / Line Pressure Control Solenoid Valve Schematic diagrams

Kia Sportage QL (2015-2026) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Line Pressure Control Solenoid Valve Schematic diagrams

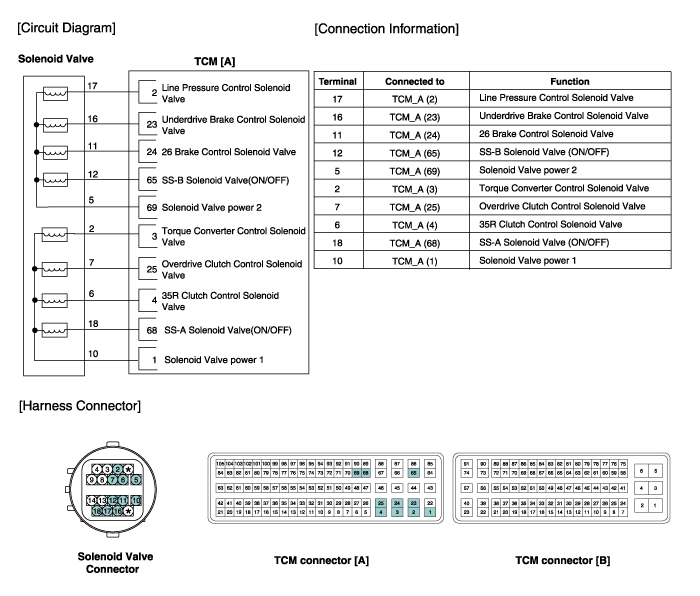

Circuit Diagram

Line Pressure Control Solenoid Valve Description and operation

Description • Line pressure control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable curren ...

Line Pressure Control Solenoid Valve Repair procedures

Inspection 1. Switch "OFF" ignition. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - &qu ...
