Description

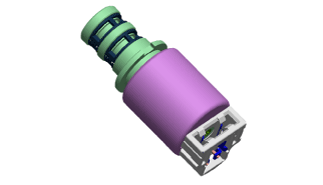

Line pressure control solenoid valve is a Variable Force Solenoid (VFS) type.
When TCM supplies variable current to solenoid valve, line pressure is controlled by solenoid valve.

Line Pressure Control Solenoid Valve Components and components location
Component Location 1. 26 Brake Control Solenoid Valve (26/B) 2. 35R Clutch Control Solenoid Valve (35R/C) 3. Underdrive Brake Control Solenoid Valve (UD/B) ...

Line Pressure Control Solenoid Valve Schematic diagrams
Circuit Diagram ...
