Kia Sportage: Fuel Delivery System / Fuel Pump Control Module (FPCM) Schematic diagrams

Kia Sportage QL (2015-2019) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pump Control Module (FPCM) Schematic diagrams

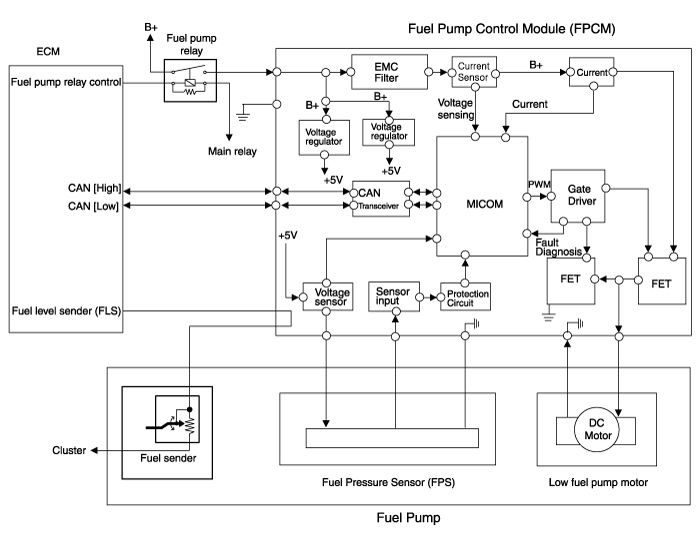

Circuit Diagram

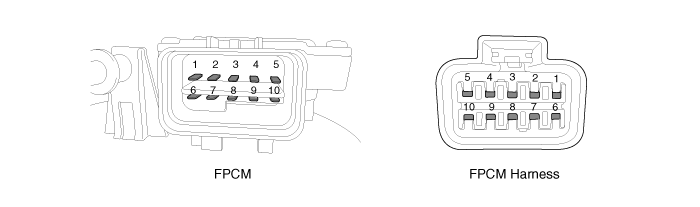

Terminal Illustration

Terminal Function
Pin No.
Description
1
Fuel sender ground
2
Fuel pressure sensor (FPS) signal input
3
Fuel pressure sensor (FPS) ground (-)
4
Ground
5
CAN [Low]
6
Fuel sender signal
7
-
8
Fuel pressure sensor (FPS) power supply(+5V)
9
CAN [High]
10
Battery power (B+)

Fuel Pump Control Module (FPCM) Description and operation
Description The fuel pump control module (FPCM) is installed on the right side of the fuel tank and controls the DC motor mounted inside the low pressure fuel pump.The module com ...

Fuel Pump Control Module (FPCM) Repair procedures
Removal 1. Release the residual pressure in fuel line. (Refer to the Fuel Delivery System - Repair Procedures - "Release Residual Pressure in Fuel L ...
