Kia Sportage: Light bulbs / Light bulb position (Front)
.png)

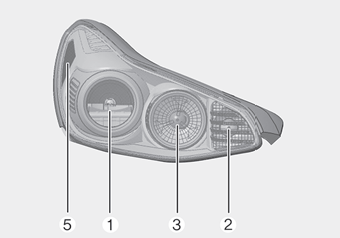

■ Head lamp - Type A
.png)

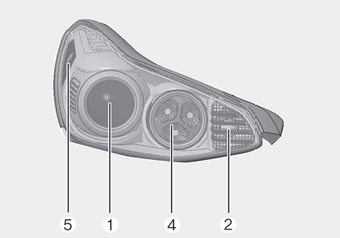

■ Head lamp - Type B
.png)

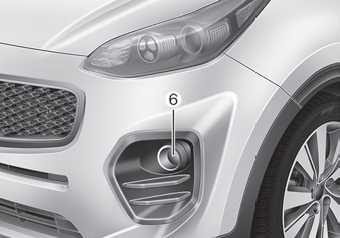

■ Fog lamp - Type A
.png)

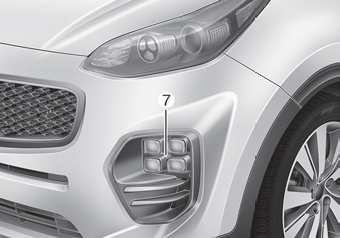

■ Fog lamp - Type B
(1) Headlamp (Low/High)
(2) Front turn signal lamp
(3) Day time running lamp /Position lamp (Bulb type)
(4) Day time running lamp /Position lamp (LED type)
(5) Side marker
(6) Front fog lamp (Bulb type)
(7) Front fog lamp (LED type)
Please keep extra bulbs on hand with appropriate wattage ratings in case of emergencies.
Refer to “Bulb Wattage” in chapter 9.
When changing lamps, first turn off the engine at a safe place, fir ...
■ Rear combination lamp - Type A
■ Rear combination lamp - Type B
■ Rear turn signal & Back up lamp
■ License plate lamp
■ High mounted stop lamp
(1) Tail lamp (BULB type) ...
