Kia Sportage: Light bulbs / Light bulb position (Rear)
![](images/light_bulb_position_rear_-541/1/page.h38(5).png)

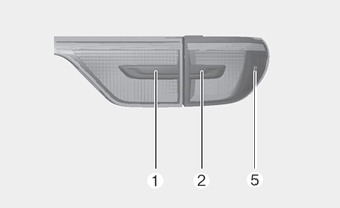

■ Rear combination lamp - Type A
![](images/light_bulb_position_rear_-541/1/page.h39(5).png)
■ Rear combination lamp - Type B
![](images/light_bulb_position_rear_-541/1/page.h40(6).png)

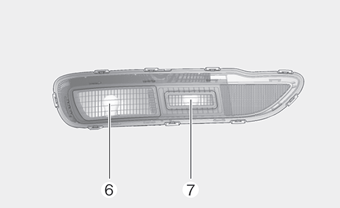

■ Rear turn signal & Back up lamp
![](images/light_bulb_position_rear_-541/1/page.h41(6).png)

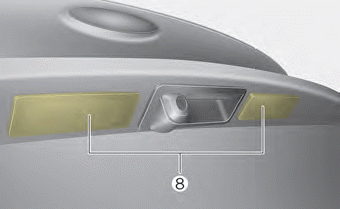

■ License plate lamp
![](images/light_bulb_position_rear_-541/1/page.h42(6).png)

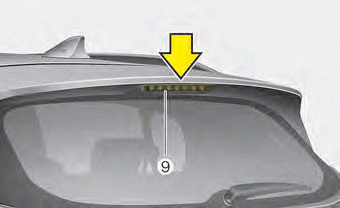

■ High mounted stop lamp
(1) Tail lamp (BULB type)
(2) Stop and tail lamp (BULB type)
(3) Stop lamp (LED type)
(4) Stop and tail lamp (LED type)
(5) Side marker
(6) Rear turn signal lamp
(7) Back up lamp
(8) License plate lamp
(9) High mounted stop lamp
■ Head lamp - Type A
■ Head lamp - Type B
■ Fog lamp - Type A
■ Fog lamp - Type B
(1) Headlamp (Low/High)
(2) Front turn signal lamp
(3) Day time running lamp /Position lamp (Bul ...
(1) Side repeater lamp (LED type) ...
Other information:
Inspection
1.
Check the battery voltage. (Low beam will be on when the battery voltage
is above 9 V.)
2.
Check the fuse and relay.
3.
Check the polarity of ballast. (The low beam will not light on in ...
