Kia Sportage: Lighting System / License Lamps Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Lighting System / License Lamps Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.

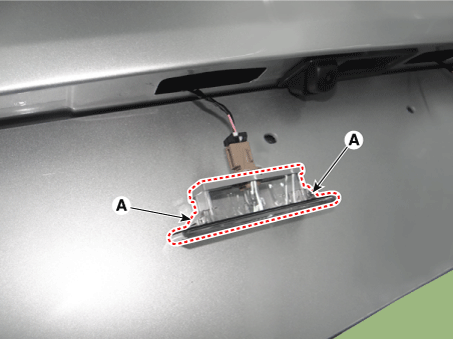

Remove the license lamp after pushing the locking hooks (A).

3.

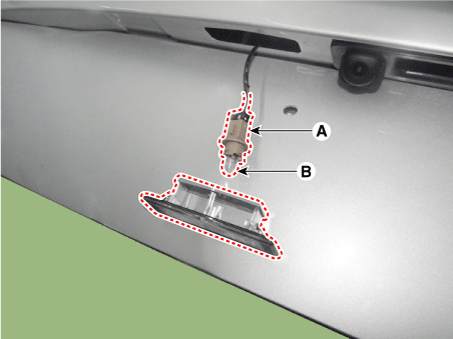

Remove the license lamp bulb (B) after removing the license lamp socket (A).

Installation
1.
Install the license lamp bulb.
2.
Install the license lamp assembly.
3.
Connect the negative (-) battery terminal.
