Kia Sportage: Instrument cluster / LCD Display Control
.png)

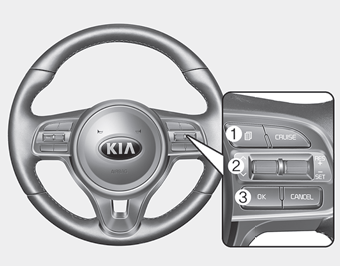

The LCD display modes can be changed by using the control buttons on the steering
wheel.
(1)
: MODE button for change the
LCD MODES
(2)
/
: MOVE scroll switch for select the items
(3) OK : SET/RESET button for set the items or reset the items
The brightness of the instrument panel illumination is changed by pressing the
illumination control button (“+” or “-”) when the ignition switch or Engine Start/Stop
button is ON, or the ...
