Kia Sportage: Instrument Cluster Control / Adjusting Instrument Cluster Illumination

Kia Sportage QL (2015-2025) Owners Manual / Features of your vehicle / Instrument cluster / Instrument Cluster Control / Adjusting Instrument Cluster Illumination

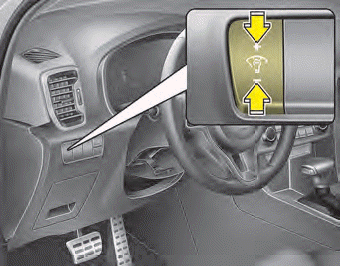

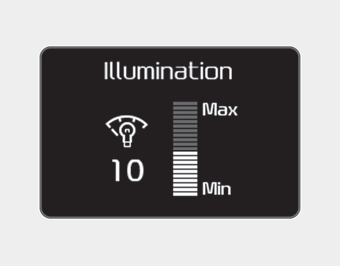

The brightness of the instrument panel illumination is changed by pressing the illumination control button (“+” or “-”) when the ignition switch or Engine Start/Stop button is ON, or the taillights are turned on.

If you hold the illumination control button (“+” or “-”), the brightness will be changed continuously.
If the brightness reaches to the maximum or minimum level, an alarm will sound.
