Removal

When replacing the LDWS switch, check that the symbol mark in the cluster operates normally by pressing the ON/OFF switch.

1.	Disconnect the negative (-) battery terminal.

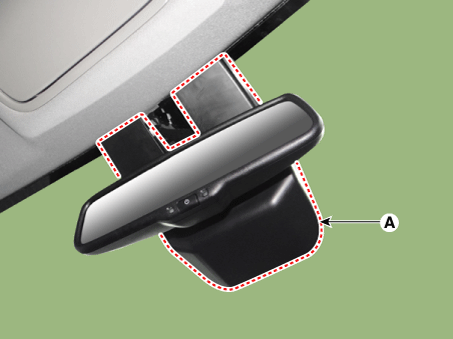

2.	Using a screwdriver or remover, remove the mirror wiring cover (A).

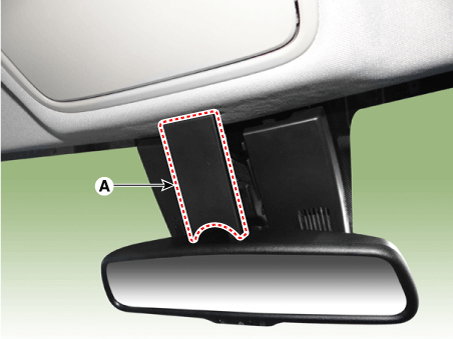

3.	Using a screwdriver or remover, LDWS cover (A).

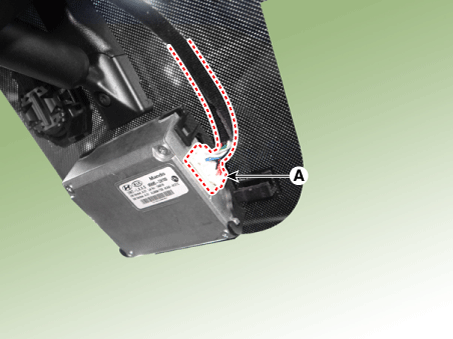

4.	Disconnect the LDWS unit connector (A).

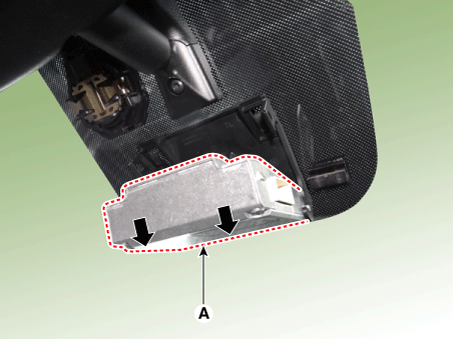

Remove the LDWS unit (A) by pulling out.

When pulling out the mounting bracket (A), be careful not to damage it.

Installation

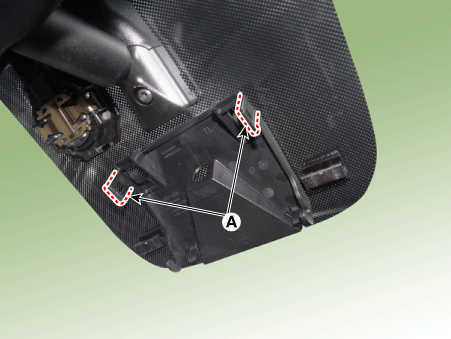

1.	Install the LDWS unit.

2.	Connect the LDWS unit connector.

3.	Install the LDWS unit cover.

4.	Install the mirror wiring cover.

5.	Connect the negative (-) battery terminal.
