Kia Sportage: Fuses And Relays / Relay Box (Engine Compartment) Components and components location

Kia Sportage QL (2015-2026) Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Components and components location

Component Location

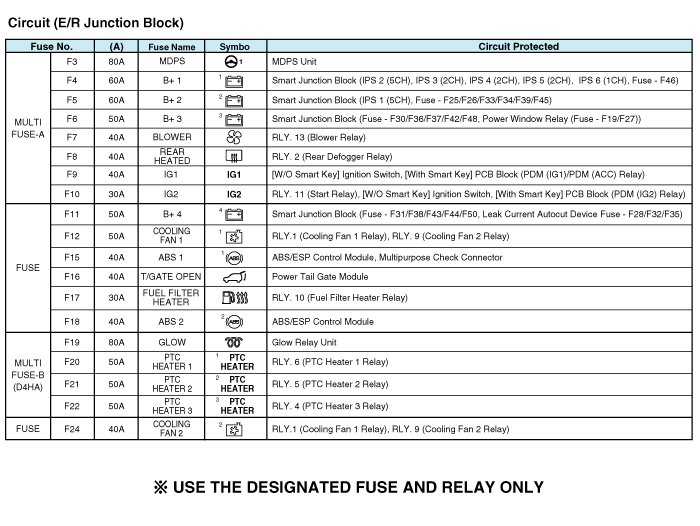

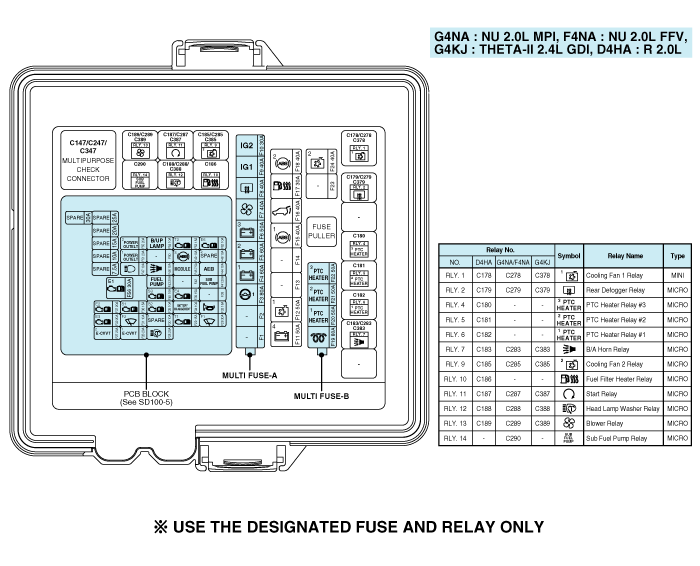

Engine room junction block

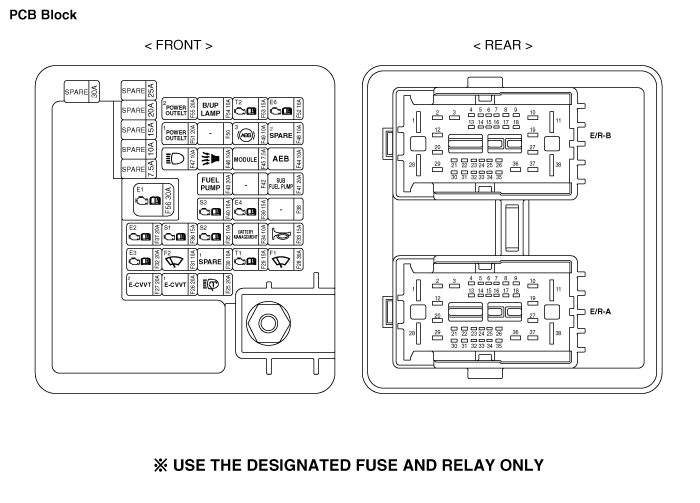

Metal Core Block (PCB)

Components and components location

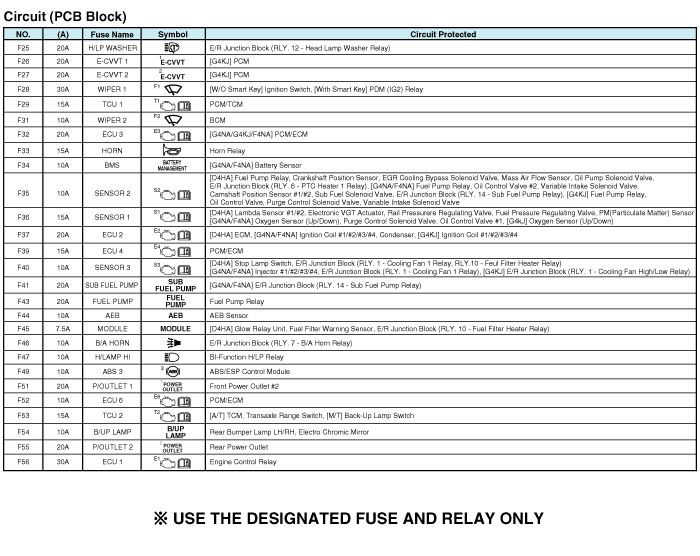

Component Location [Engine Room] 1. Engine room junction block [Interior Relay] 1. Smart junction block (SJB) ...

Relay Box (Engine Compartment) Repair procedures

Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay block. ...
