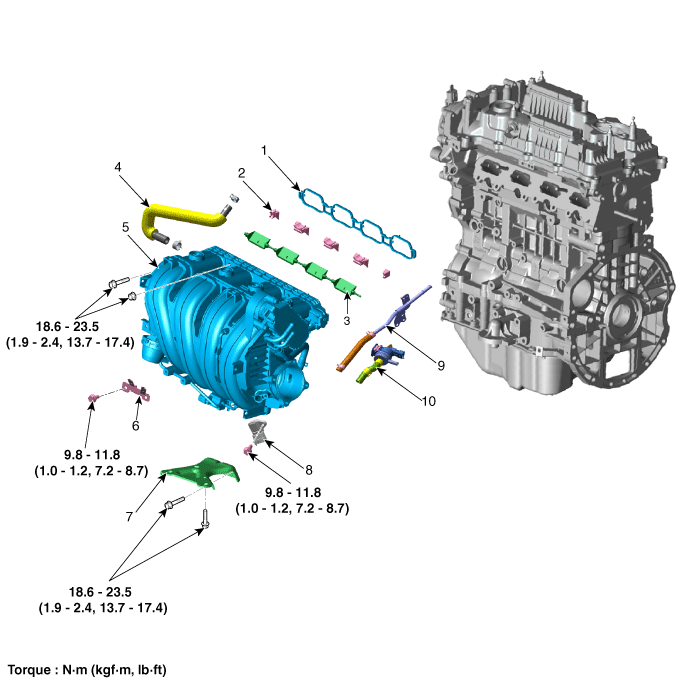

Components

1. Intake manifold gasket
2. Cage
3. Variable charge motion actuator (VCMA) shaft
4. Positive crankcase ventilation (PCV) hose
5. Intake manifold

6. Bracket
7. Intake manifold stay
8. Manifold absolute pressure sensor (MAPS)
9. Vacuum hose & pipe
10. Purge control solenoid valve (PCSV) & bracket
