Kia Sportage: Chassis / Steering Gear Rack, Linkage and Boots Repair procedures
| 1. |

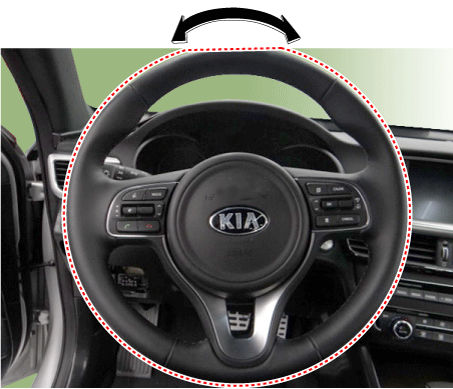

Check the steering wheel free road.
| (1) |
Turn the steering wheel so that the front wheels can face straight
ahead.
|
| (2) |
Measure the distance the steering wheel can be turned without
moving the front wheels.
|
Standard value: 30mm (1.18in.) or less
|
|
| (3) |
If the play exceeds standard value, inspect the steering column,
shaft, and linkages.
|
|
| 2. |
Check the steering linkage for looseness or damage.
| (1) |
Check that the dust parking and cap are not damaged.
|
| (2) |
Check that the Bellows bands are not loose.
|
| (3) |
Check that the steering gear box is not damaged.
|
| (4) |
Check that the column and shaft are properly connected to the
steering gear box.
|
|
