Kia Sportage: Engine Control System / Rail Pressure Sensor (RPS) Specifications
Kia Sportage QL (2015-2026) Service Manual / Engine Control / Fuel System / Engine Control System / Rail Pressure Sensor (RPS) Specifications

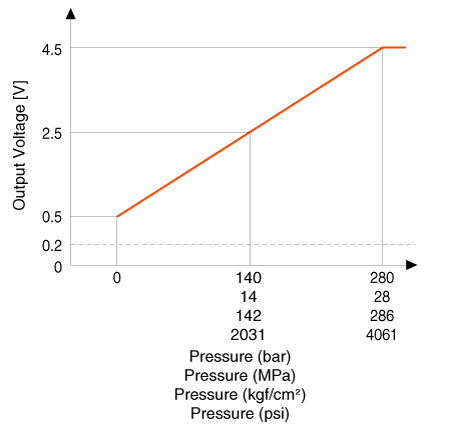

| Specification |
|
Pressure |
Output Voltage (V) [Vref=5V] |
|
|
bar |
[MPa (kgf/cm², psi)] |
|
|
0 |
0 (0, 0) |
0.5 |
|
140 |
14 (142, 2031) |
2.5 |
|
280 |
28 (286, 4061) |
4.5 |
